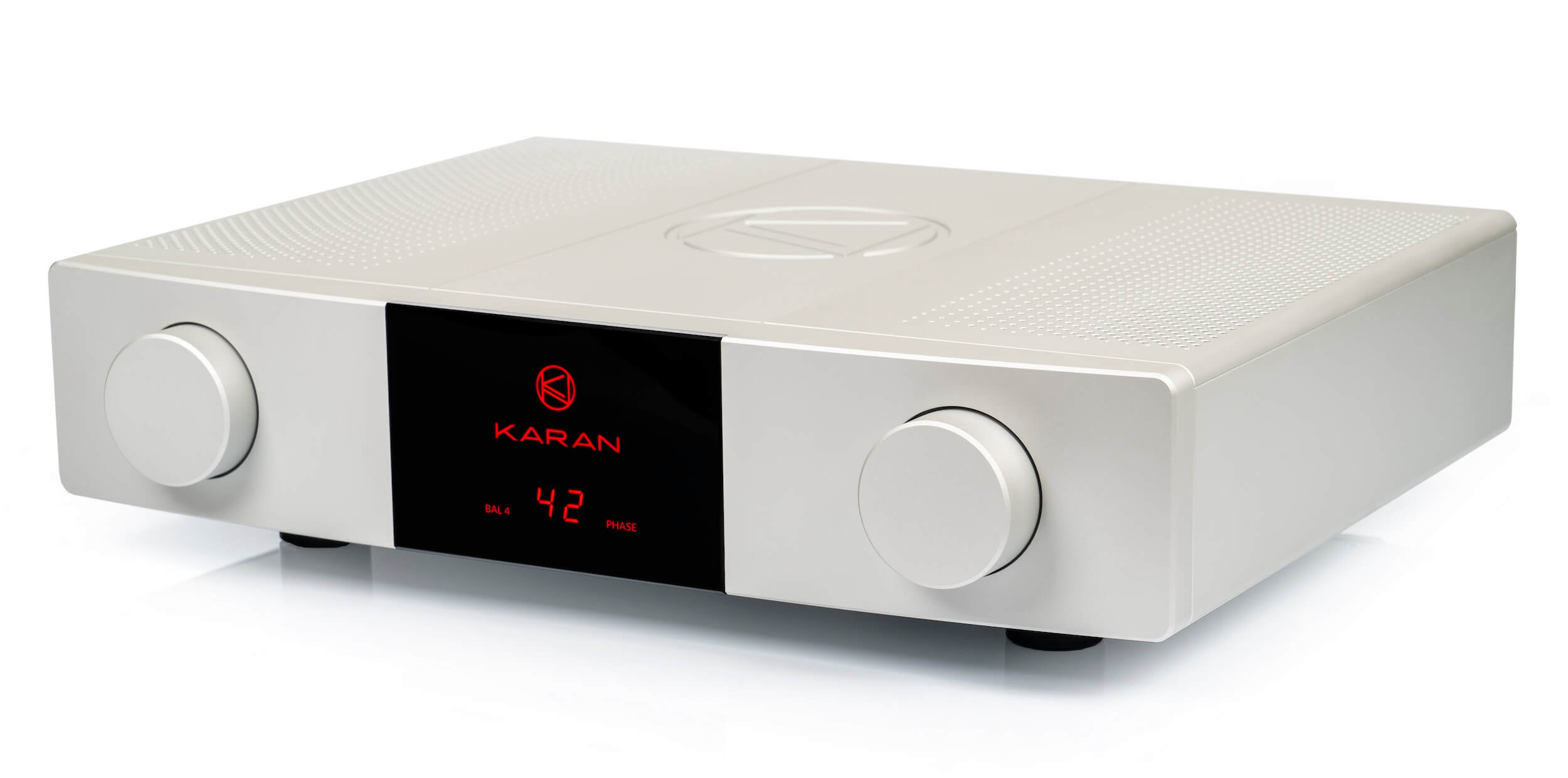

Our Magnificent Preamplifier

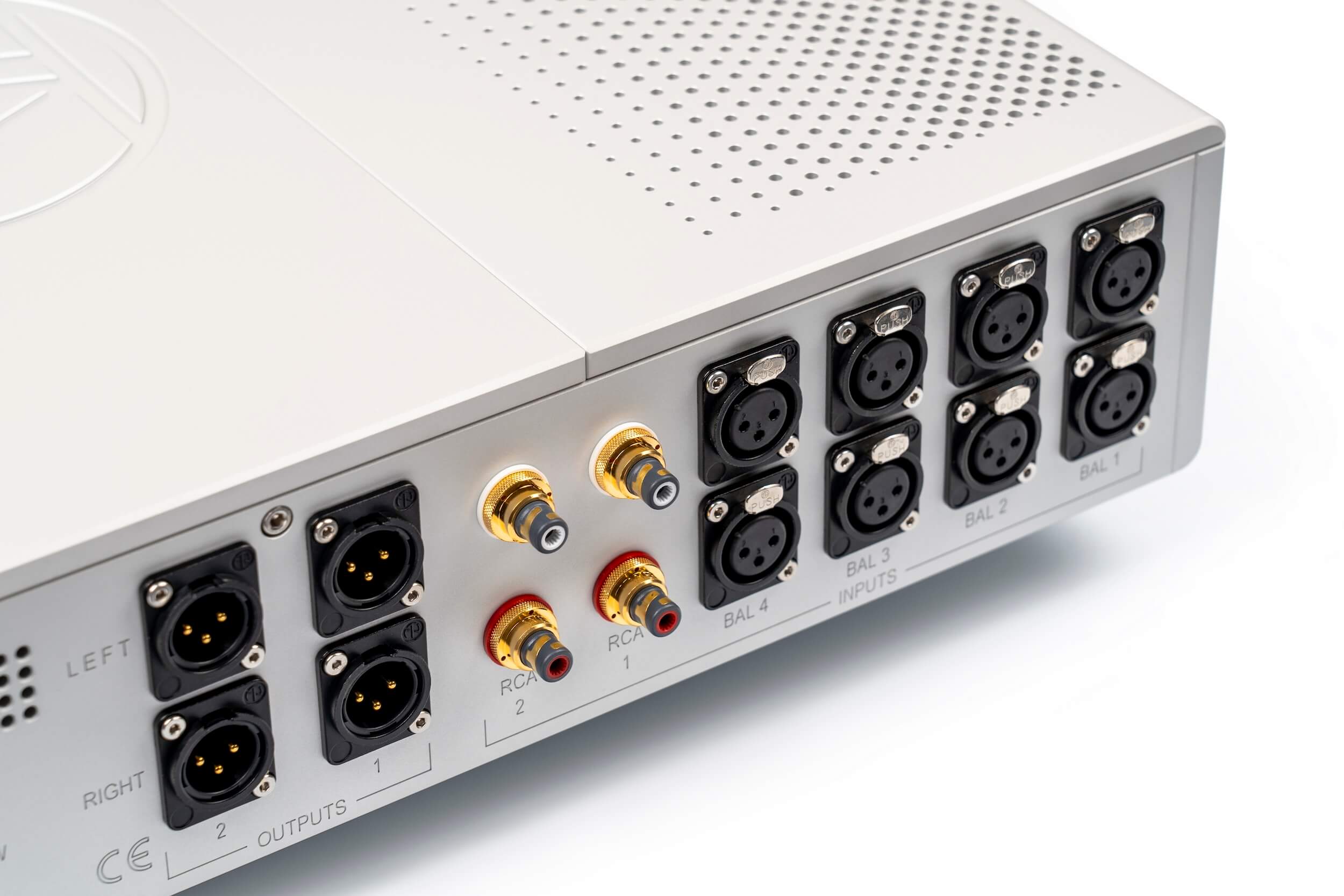

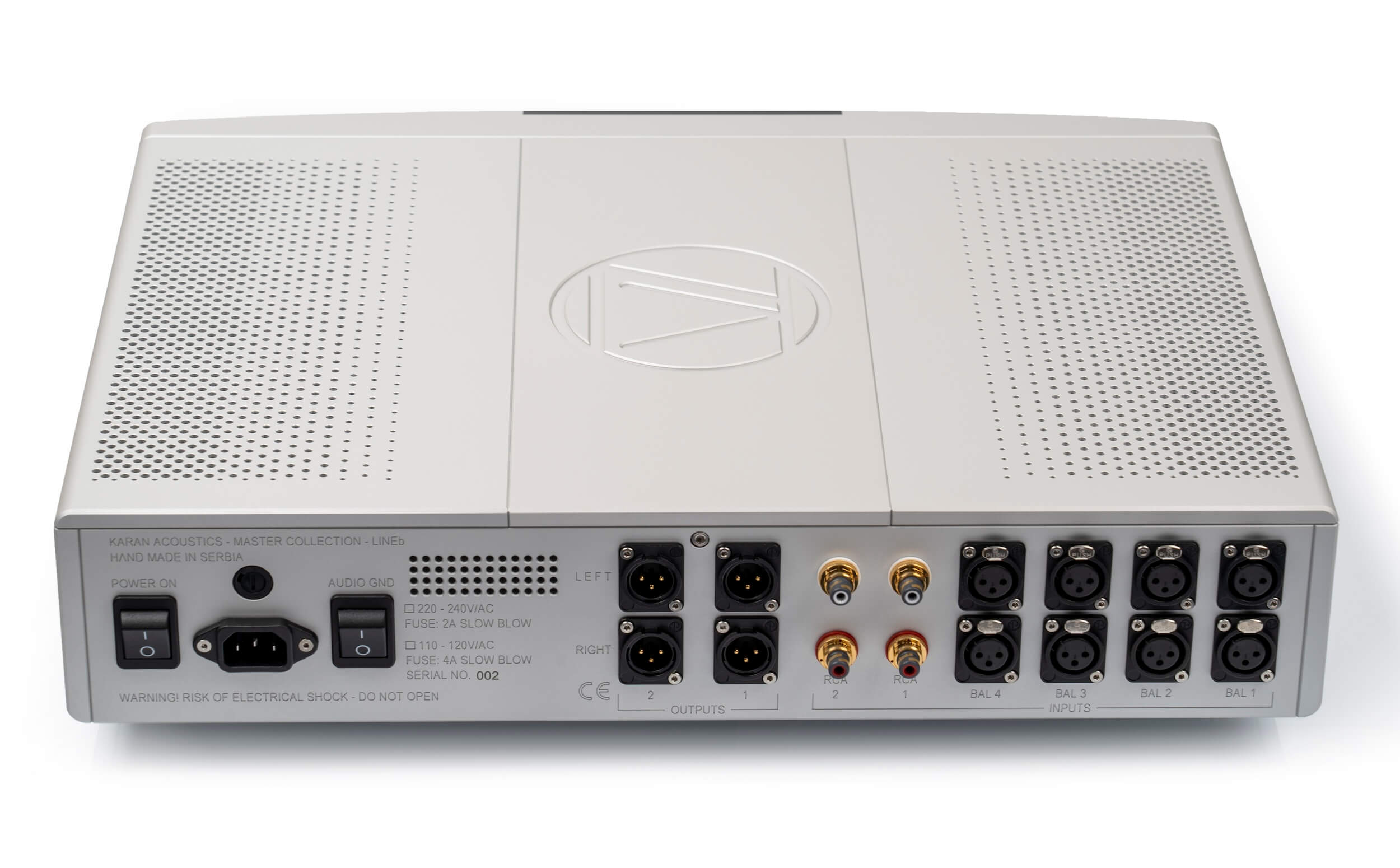

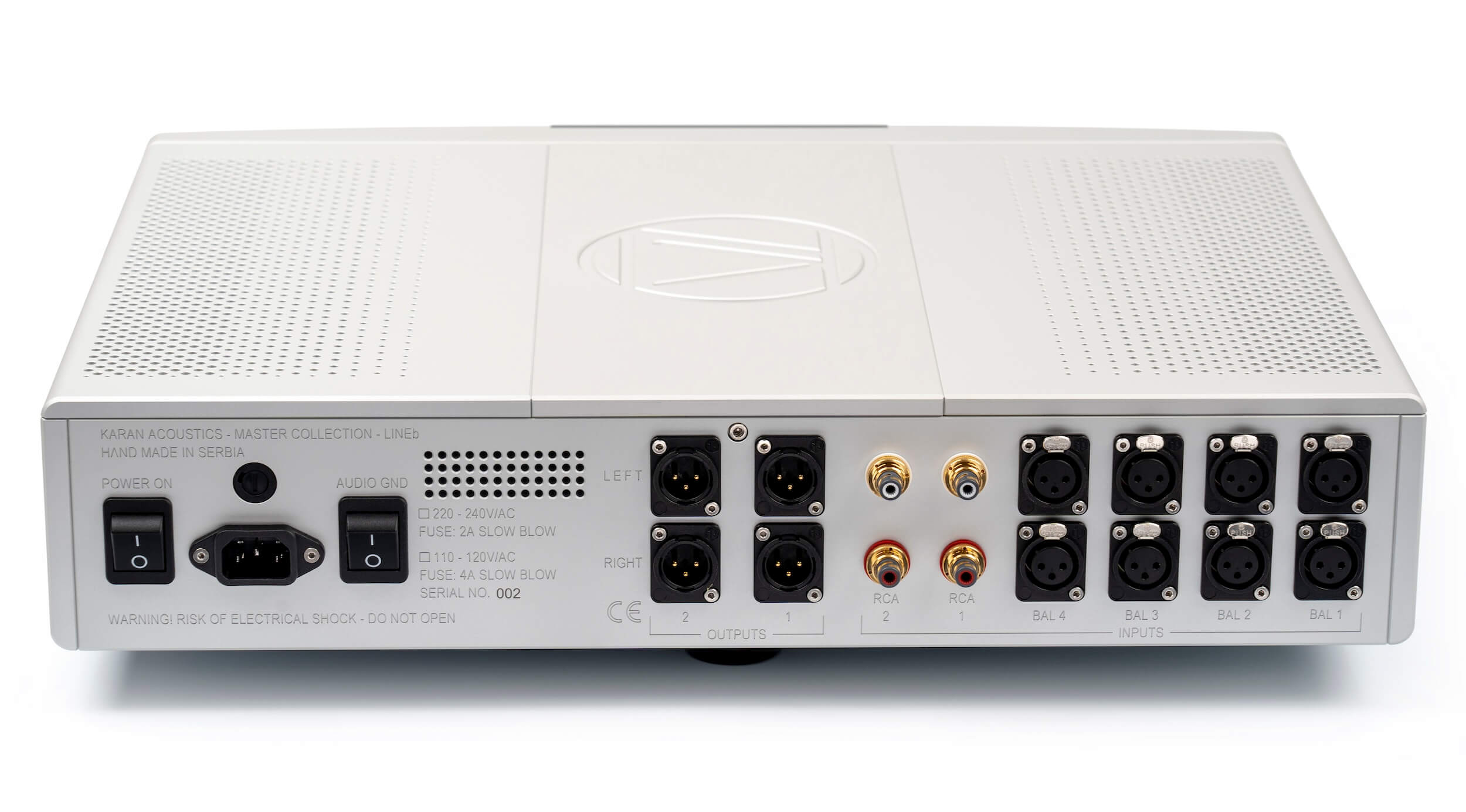

| LINE INPUTS | 4 balanced (XLR) and 2 unbalaced (RCA) |
| LINE OUTPUTS | 2 balanced (XLR) |
| INPUT IMPEDANCE | 30kOhm (balanced/unbalanced) |
| OUTPUT IMPEDANCE | 90Ohm |
| OUTPUT LEVEL | 1.55V/RMS (nominal), 18.0V/RMS (maximum/balanced/600Ohm load) |
| MAX. INPUT LEVEL (before saturation) | 5.4V/RMS (balanced/unbalanced/Gain set to 6dB) |
| 3.6V/RMS (balanced/unbalanced/Gain set to 9dB) | |
| GAIN | +6dB or +9dB (adjustable) |
| FREQUENCY RESPONSE | 20Hz to 20kHz, +/-0dB; (1.5Hz to 3Mhz, -3dB) |
| DISTORTION | THD 0.003% (Full output, 20Hz to 20kHz) |
| IMD 0.003% (Full output) | |
| SPEED | Rise and Settling time <450ns |
| Slew rate 1.500V/us (Amplification stages) | |
| SIGNAL TO NOISE RATIO | >120dB (unweighted) |
| AC VOLTAGE | 115V or 230V (nominal line voltage) |
| AC VOLTAGE RANGE | +/- 10% (from nominal line voltage) |
| POWER CONSUMPTION | 60W (maximum) |
| WARRANTY | 5 years, parts and labor |
| NET DIMENSIONS (w/h/d) | 504 x 126 x 390mm; 19.8 x 5.1 x 15.3inch |
| NET WEIGHT | 17.4kg / 38.4lbs |
